Manual toggle presses
The EMG range of manual toggle presses comprises two different types of press :
- Bench-top manual toggle presses where the maximum power, from 1,100 to 4,400 lbs, is obtained only at the end of the stroke depending on the force exerted on the lever.
- High-capacity manual toggle presses, which have significantly higher capacities than their standard counterparts.
These presses are robust, precise, flexible, multifunctional and ergonomic. The weight and stable base of these presses allow them to be installed and used on a workbench in any type of workshop. The mechanism of these tools is simple to operate. The operator applies the pressure required for the process (cutting, marking, etc.) by activating the press handle.
Quick and easy to use, they are also economical. They require very little investment.
Together with the 2 other types of manual press - rack and pinion manual presses and high-capacity rack and pinion manual presses - they make up the extensive range of EMG manual presses.
| Power1,100 lbs |
| Stroke1.9 inch |
| Swan-neck depth2.80 inch |
| Clear height1.6 » 7.2 inch |
| Weight20 lbs |
| Power1,540 lbs |
| Stroke1.5 inch |
| Swan-neck depth3.7 inch |
| Clear height1.3 » 10.2 inch |
| Weight56 lbs |
| Power3,300 lbs |
| Stroke1.1 or 2.3 inch |
| Swan-neck depth4 inch |
| Clear height2.3 » 9.8 inch |
| Weight71 lbs |
| Power4,400 lbs |
| Stroke2.3 inch |
| Swan-neck depth5.10 inch |
| Clear height4.7 » 11 inch |
| Weight144 lbs |
| Power1,540 lbs |
| Stroke1.5 inch |
| Swan-neck depth13.7 inch |
| Clear height3.1 » 10.6 inch |
| Weight210 lbs |
| Power3,300 lbs |
| Stroke1.1 or 2.3 inch |
| Swan-neck depth8.6 inch |
| Clear height8.6 » 11 inch |
| Weight122 lbs |
| Power4,400 lbs |
| Stroke2.3 inch |
| Swan-neck depth9.8 inch |
| Clear height9 » 11.4 inch |
| Weight155 lbs |
Special executions
Applications
MAIN FEATURES
Force / stroke monitoring
MANUAL AND PNEUMATIC PRESSES
EMG offers all types of force and/or displacement management thanks to force and displacement sensor solutions adapted to each need, for 100% part control.
Non return system
FOR MANUAL PRESSES

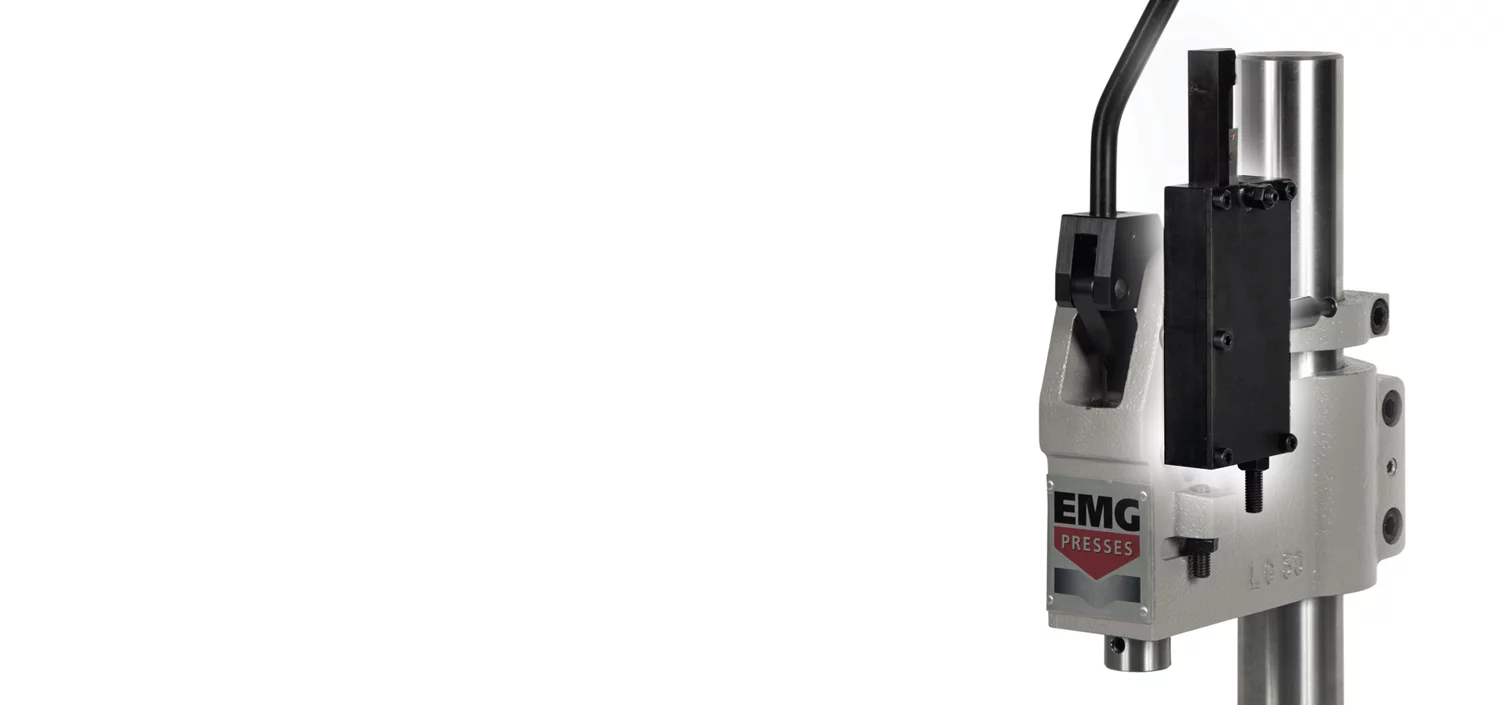

Non return system: prevents the lever from rising if the end of travel is not reached.
This ensures that every operation is carried out completely and reproducibly.
Features :
- Ground and rotationally locked slide
- Automatic spring return of the slide
- Quick and reliable free height adjustment
- Precise adjustment of bottom dead centre by a mechanical stop to ensure cycle repeatability
- FGL 250 cast iron base and head for strength and rigidity
- Maintenance-free and grease-free
- Predisposed for mounting on a workbench
- Paint: 5015 Sky Blue base - RAL 7036 Platinum Grey head
Manufactured in France and ISO-9001 certified since 2000, the EMG's range of bench-top manual presses offers a wide choice of options and adaptations to meet the most diverse needs and requirements of each application, in industry as well as in the building trade.
The power reserve of each model ensures that the most varied operations are carried out smoothly, producing professional results even on long strokes.
- Adjustable headroom and stroke
- Quick and easy to set up
- Low investment
LONG is also committed to designing and equipping the special machines required by the specific activities of each trade. To meet the needs of specific applications required by certain trades and fields of activity, EMG offers custom-made special equipment, perfectly adapted to specifications and production constraints.
Thanks to its design office and a fleet of more than 40 machining centres, EMG can design and manufacture any modification or special presses on request, as well as small press fittings and tooling, such as :
- Press with offset toggle to increase the depth of the gooseneck and the work table.
- Press with a tool for crimping 3 rivets to hold a steel part in a stainless steel support.
- Pneumatic press with 2-position cutting tool incorporating a top deflector for part ejection.
- Pneumatic press with electric control panel
APPLICATIONS
Bench-top manual toggle presses are mainly used in workshops for applications requiring high effort at low height, such as cutting, crimping and marking. They are suitable for small production runs of small to medium-sized parts.
On manual presses with toggle levers, movement of the lever is very fast and ergonomic, as it is done through a maximum of 90° to cover the entire stroke of the press. The nominal pressure developed by this type of press is obtained at the end of the stroke.
The force management system enables the quality of the various applications carried out with the press to be controlled quickly and accurately.
An EMG manual press is delivered with a service manual, CE conformity certificate and drawings. It comes with a full one-year parts, labour and travel warranty.
EMG, a manufacturer of manual toggle presses, is always ready to listen to its customers, who are professionals in the fields of marking, cutting, riveting and more. Our teams are available to work with you on your projects. We have a technical and testing center to enable you to test your processes.
